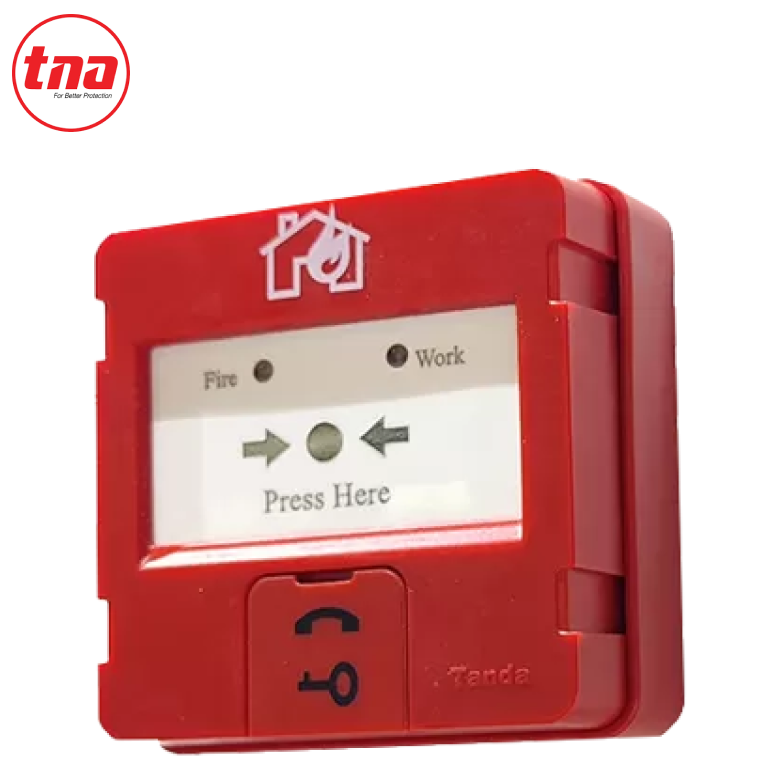

TXC7141 Conventional Manual Call Point Fire Alarm with Reset Key

This trusty red button stands guard against emergencies with its interference-resistant circuitry and sturdy plastic dome. Give it a firm press to sound the alarm, then use the special key to reset things once the coast is clear. It connects directly to sirens and strobes via passive output contacts for a synchronized emergency response. Installation is a total breeze thanks to the plug-type design that keeps your wiring neat and tidy.

Power Supply Voltage	24VDC (Acceptable Range: 16~28VDC)
Current Consumption	Normal ≤ 20µA, Alarm ≤ 30mA
Output Contact Rating	DC 30V / 0.1A Passive Contact
Activation Method	Manual Press of Plastic Dome
Reset Method	Key operated 90 degree rotation
Operating Temperature	-10°C to +55°C
Humidity Range	≤ 95% RH (Non-condensing)
Dimensions	9.0 x 9.0 x 3.4 cm
Mounting	60mm mounting hole distance
